If you’re intimated by M code, this post is for you. I’ll explain techniques I use for understanding M code.
Read more: Learn Power Query M codeM code?
Power Query is a Microsoft ETL tool used in Excel and Power BI. M code is generated when we interact with the user interface to change our data.
Challenge
We need a good problem to learn from. This fun challenge is from an Excel BI Analytics LinkedIn post. Thank you Vijay A. Verma!
Requirement

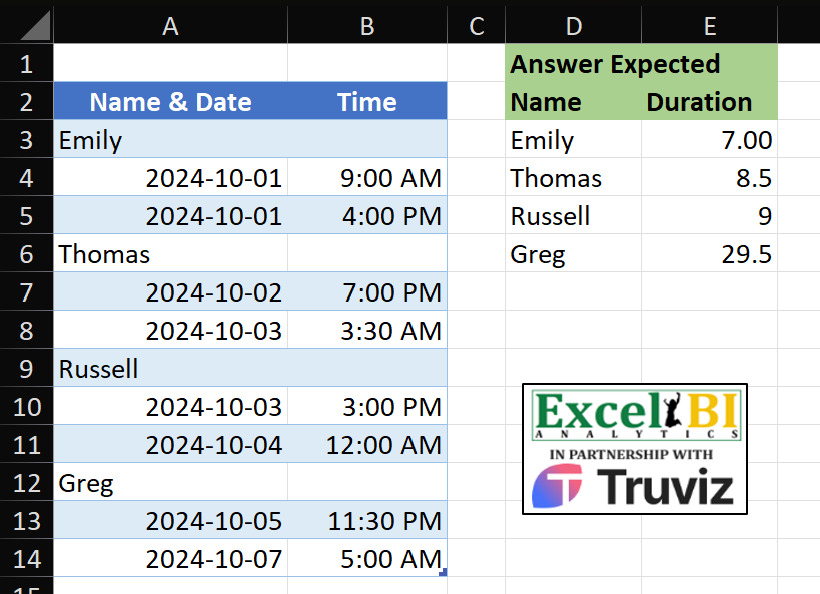

Given the data on the left, rearrange and calculate it to end up with data on the right. Each person has a start Date & Time to be subtracted from their end Date & Time to provide a time duration.
This is a sample. Imagine a real data-set with 200000 rows! Here’s the Power Query M code from Kris Jaganah that we WILL understand soon!
let
A = Excel.CurrentWorkbook(){[Name="Table1"]}[Content],
B = Table.ToColumns(A),
C = List.Select( B{0}, each Text.From(_)=_),
D = List.Transform( List.Difference( B{0}, C ),Number.From),
E = List.Transform( List.Split( List.Transform({0..List.Count(D)-1}, each D{_} +List.RemoveNulls( B{1}){_}),2) , (x)=> (x{1}-x{0})*24),
F = Table.FromColumns( {C,E},{"Name","Duration"})
in
FWhy is all this M code necessary? We have bad data. Name & Date has two different data items. That shouldn’t happen! We have three items:
- Name
- Start Date Time
- End Date Time.
Each should be a separate column. But Power Query & M can solve this.
Techniques to Understand M Code
When auditing a Power Query solution I do this:
- examine raw data and think about required steps
- what needs to be done?
- what’s the most challenging part?
- open Power Query, study applied steps one by one, back and forth
- it REALLY helps to see how the data changes in every step
- open Advanced Editor to study M code
- compare applied steps to M code (steps are converted into M code)
- hover over M functions to see syntax (visit documentation)
- some steps are simple, others combine functions (write it out on paper)
- break long steps into new queries to see data created
I assumed Kris would rearrange data to a row per person with three columns: Name, Start Date Time, End Date Time. I was wrong and learned a lot!
Examine Raw Data
There’s a million ways to solve this but all solutions will have to:
- extract text names from Name & Date
- add Time to Date for each row
- per person calculate Start Date Time & End Date Time difference
- horizontally align Name and Duration (columns D & E)
Applied Steps

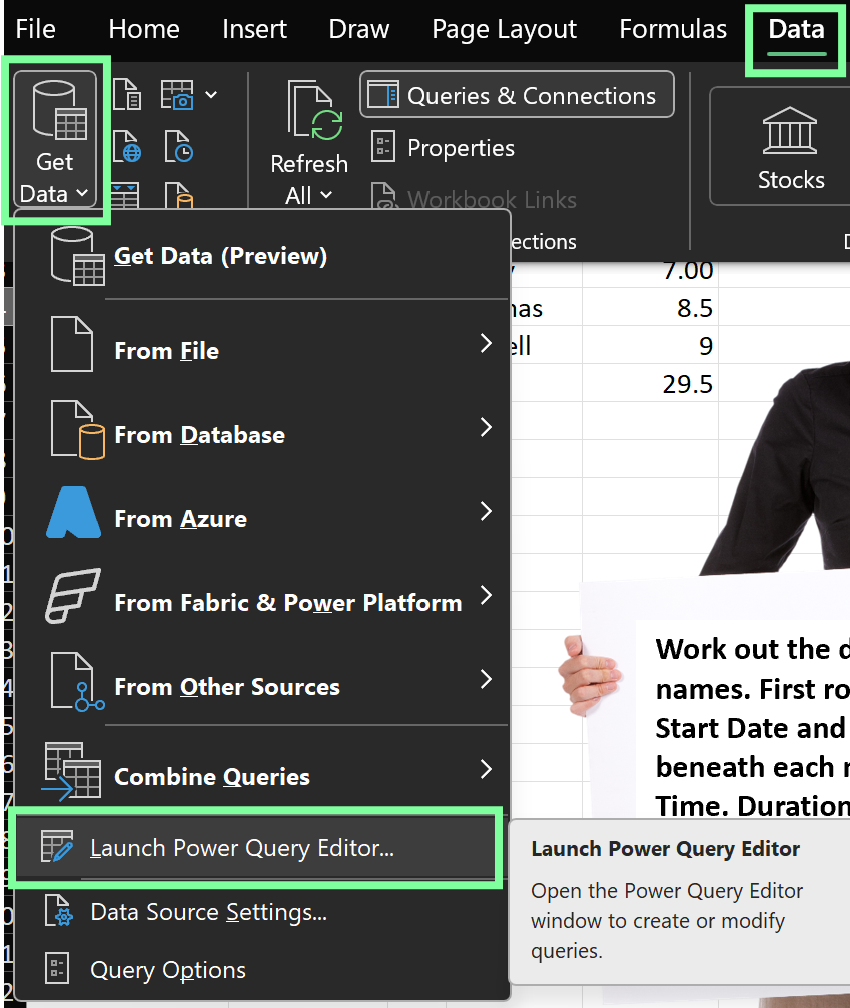

Open Power Query
We don’t have to load data as we are auditing an existing solution.
- on the ribbon select Data
- on the left select Get Data
- select Launch Power Query Editor
Study Applied Steps
- data preview: what the data looks like after each step
- applied steps: examine each step to see how the data has changed
- formula bar: formula syntax generated by each applied step
We’ll start at the beginning with step A!
Step A

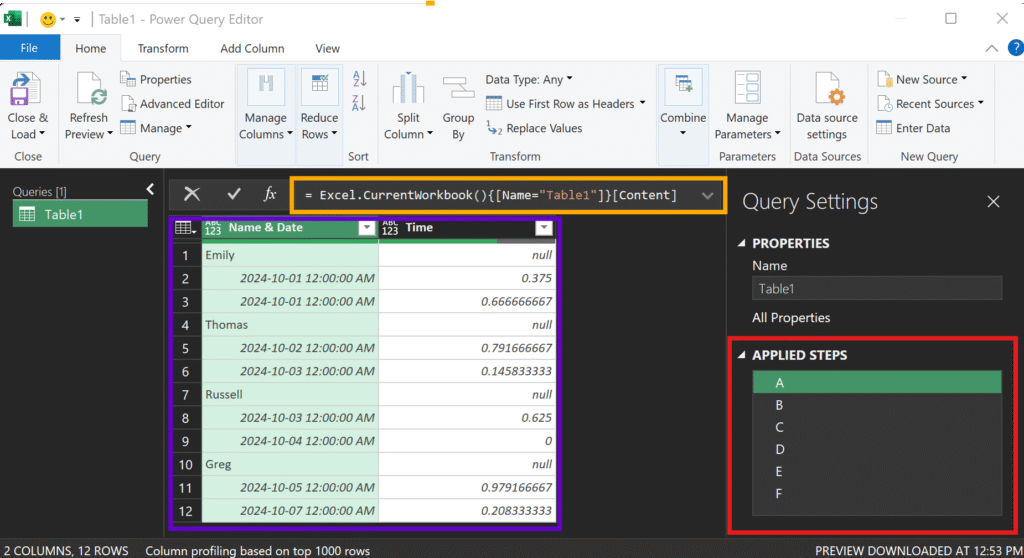

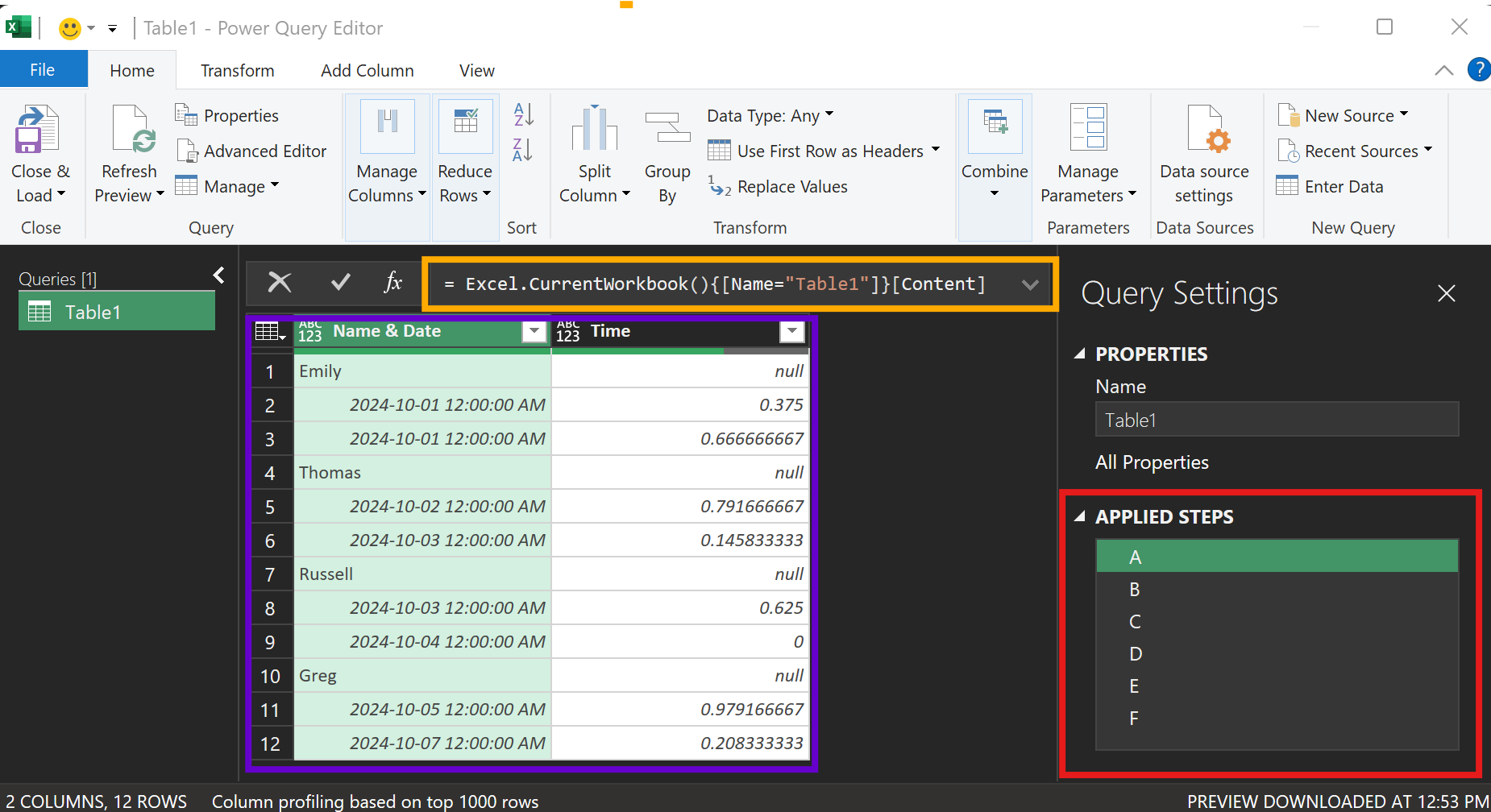

Under APPLIED STEPS, click A. Formula bar shows us this code:
= Excel.CurrentWorkbook(){[Name="Table1"]}[Content]Kris loaded Table1, which we saw in sheet1, into Power Query:
- active cell is anywhere within Table1 (cell A8 below)
- select Data on the ribbon
- select icon From Table/Range (section Get & Transform Data)
If you’re recreating this solution from the beginning please note:
- by default, importing a table creates step Source. Kris renamed it to A.
- he removed auto step Changed Type (P.Q. trying to help us…not needed here)

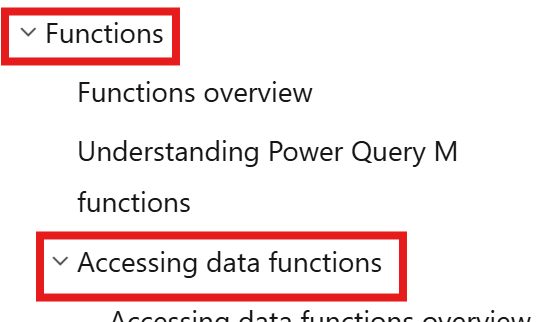

Excel.CurrentWorkbook imports data from the current Excel file. It belongs to a category of functions that connect to and import data.

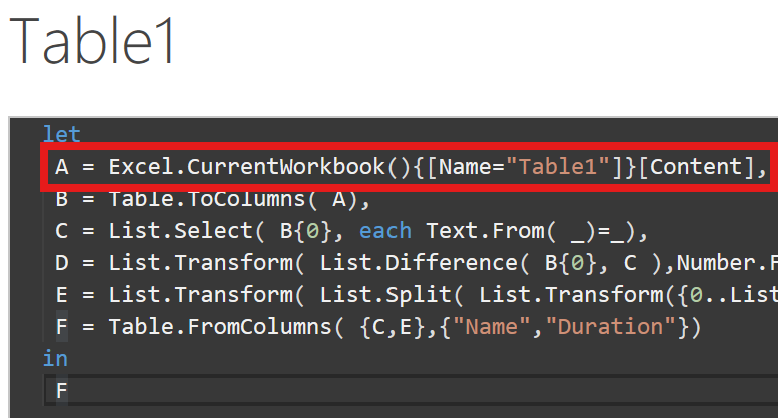

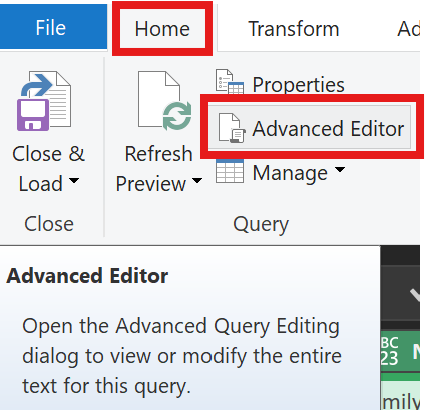

Now, we’ll look behind the curtain at the M code! On the ribbon select Home and Advanced Editor:
Step A has a slightly different syntax than in the formula bar. Note:
- keyword let is before all steps
- step name (A) is listed followed by = and the formula bar code
- each step, except the last one, ends with a comma
- keyword in is after all steps (unless there’s a nested let & in!)
- our final data (answer), typically the last step (F), is after in
In the bottom right corner select Close.
Now, prepare yourself for a wild ride into the magical realms of M code!
Step B
In step B, don’t think about WHY (that’s answered in a future step). Focus on WHAT’s happening for now.
Under APPLIED STEPS, click B. Formula bar shows us this code:
B = Table.ToColumns(A),Function Table.ToColumns references step A. Table.ToColumns syntax is:
Table.ToColumns(table as table) as listTo understand step B, we need to review Structured Types. Think of them as things: planes, trains, and cars that share a common purpose (take you somewhere) but are all unique.
Structured Types: collections of things or values:
table most common Power Query object type (step A is a table). A collection of data organized in rows and columns (like a database)
list ordered sequence of values. Lists have a single column. Step B uses list function Table.ToColumns to convert Step A columns into a list
record named fields, like a row in a table. Records represent individual data entries
Each type has it’s own functions that perform actions.

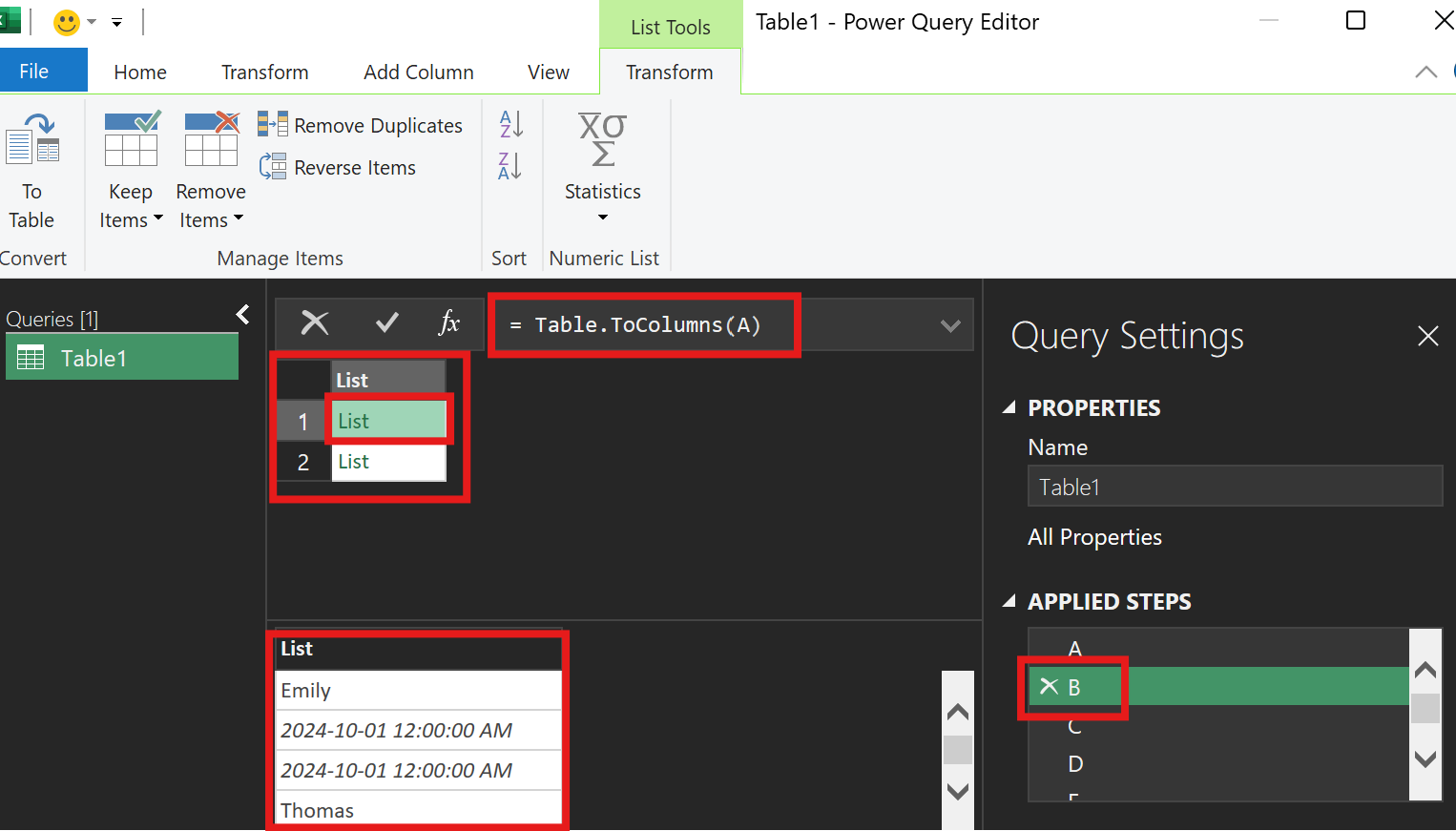

Below, in step B, note the following:
- list function Table.ToColumns references step A table and creates a list
- it’s a list with nested lists! Step A’s table columns have become lists in step B!
- I selected the first nested list to peer inside: all step A column Name & Date values are inside
We’ll get to the WHY, but at least we understand WHAT happened in step B. Feel free to glance at the M code in the Advanced Editor again.
Step C

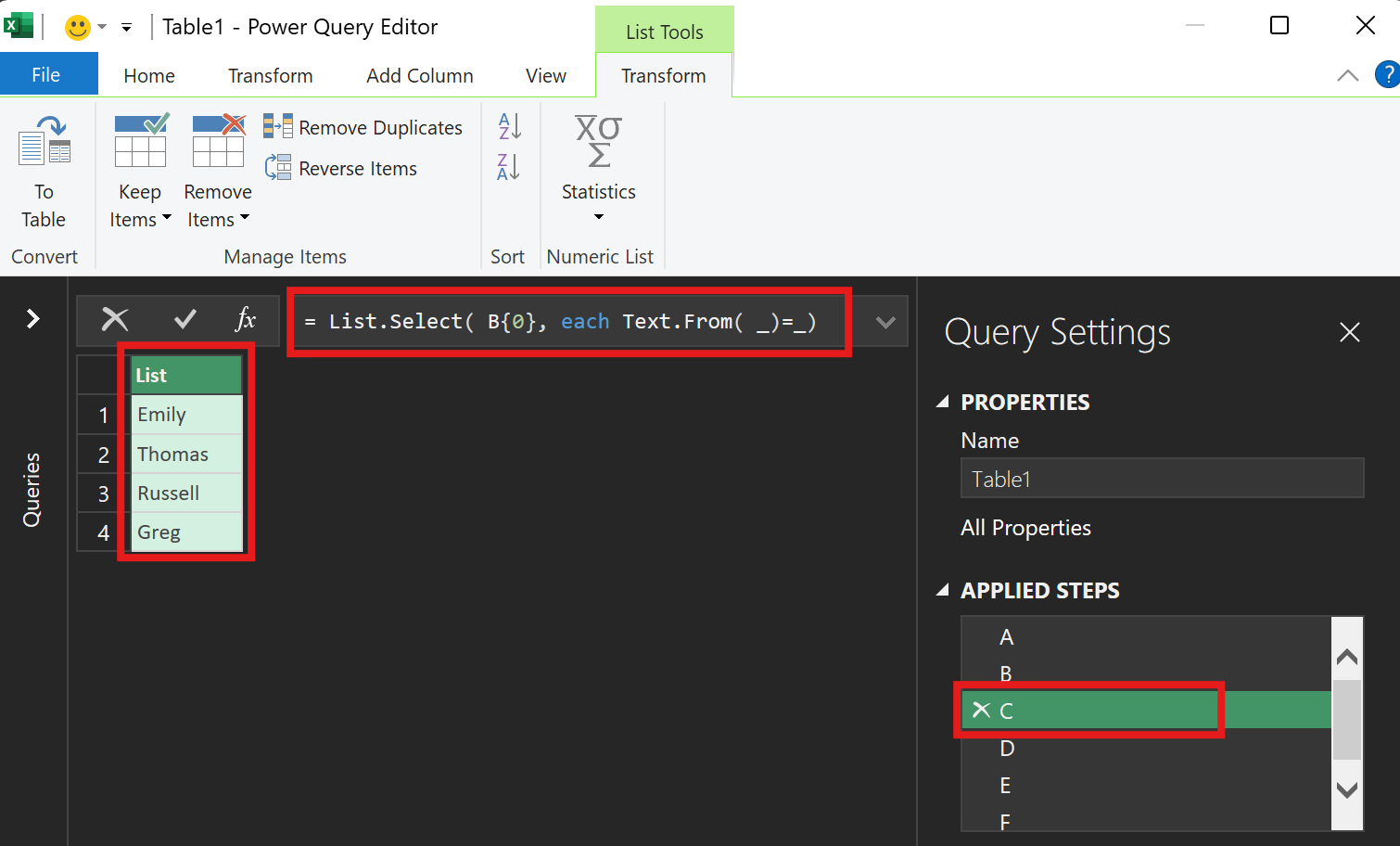

Step C output is below. All four names are extracted! Now we understand step B’s purpose. Step C uses list function List.Select to extract text items from the first nested list in step B.
We now know WHAT step C did but HOW did it do it? The formula bar displays this code:
= List.Select( B{0}, each Text.From(_)=_)Remember: function syntax helps us unravel the mystery:
List.Select(list as list, selection as function) as listlist as list List.Select asks for a list. B{0} gives it the first embedded list from step B (M code is zero based meaning counting starts with 0 not 1).
each Text.From(_)=_) function Text.From converts each list item into a text. For each item, convert it to a text and compare =_ it to the original list value. If they’re both text then keep them! So, only original text values will be the same as values converted to text.
I played with the syntax and removed the comparison part at the end =_ Without this, all values become text and remain. A tricky piece of syntax!
It gives us a four item list of names (List.Select returns a list).
Step D
At a high level, step D says: give me the other stuff in the first nested list (NOT the four text names) and convert it to number.
= List.Transform( List.Difference( B{0}, C ),Number.From)Explore the syntax seen above/below.

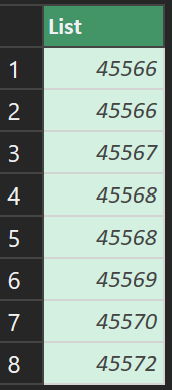

List.Transform(list as list, transform as function) as listStep A reminds us the other stuff is eight date values (aka numbers):
Step E
Yes, the M code in step E is challenging (get coffee) but we can do it!
E = List.Transform(
List.Split(
List.Transform({0..List.Count(D)-1}, each D{_}+List.RemoveNulls( B{1}{_}),
2
)
,(x)=> (x{1}-x{0})*24

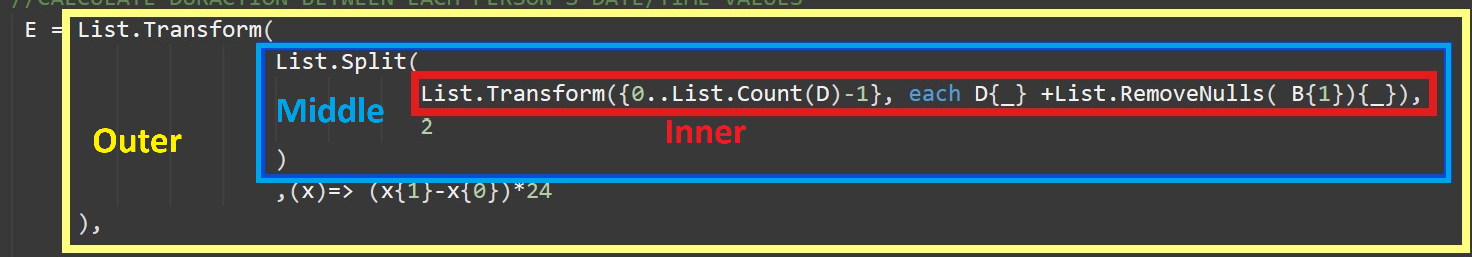

)We’ll break it into three parts:
Step E inner part
List.Transform({0..List.Count(D)-1}, each D{_}+List.RemoveNulls(B{1}{_})List.Transform wants a list then an action on the list then return a new list

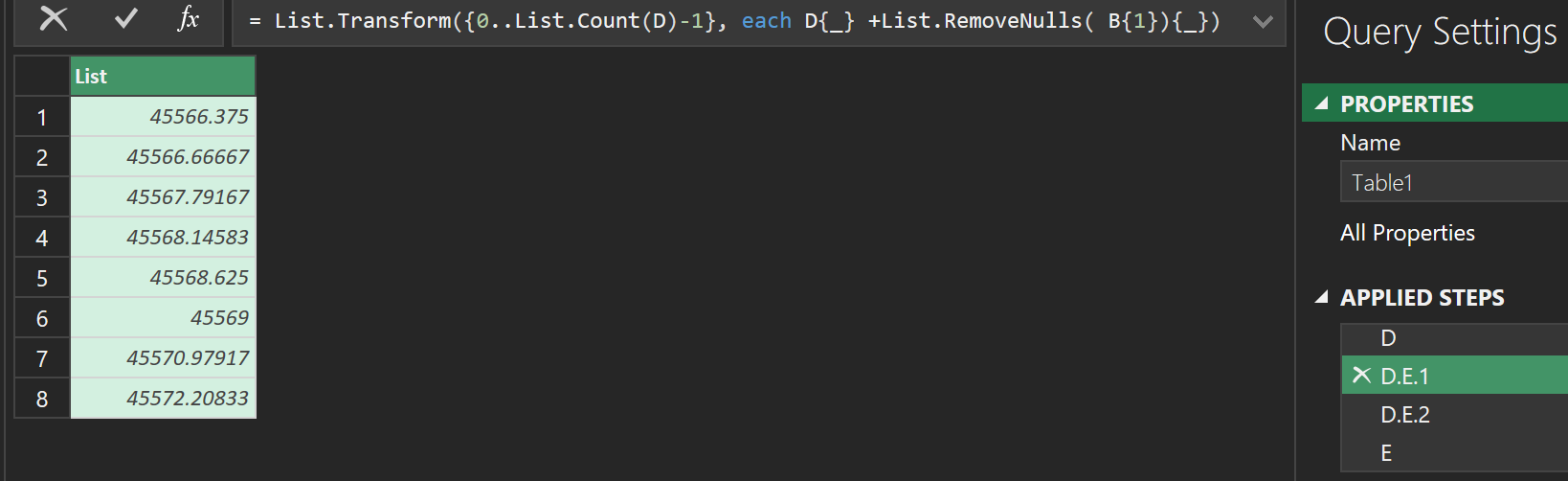

List.Transform(list as list, transform as function) as listI wanted to see what it produced so I created step D.E.1:
Integer values (e.g. 45566) are dates. It adds time portion (day fraction between 0 and 1) to the integer! Now I know WHAT it creates but HOW?
The list (inside List.Transform) part below creates a list from 0 to 7:
{0..List.Count(D)-1}

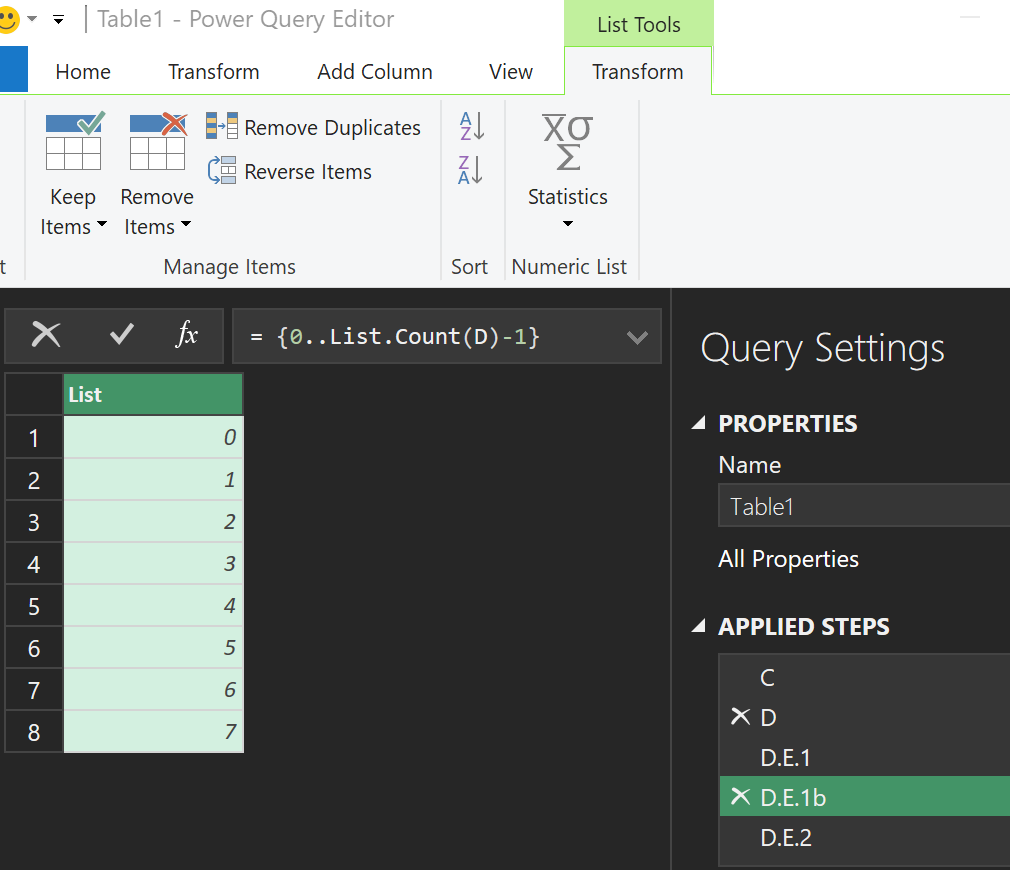

Below, ={0..7} creates list, always 0 to 7 Above, it’s dynamic via count function ={0..List.Count(D)-1}
This is perhaps the only part that I don’t 100% understand…but I think of it as creating eight rows so we can add eight date (integers) and time (decimals) values together.
Now, let’s see exactly what transform as function does:
each D{_}+List.RemoveNulls( B{1}{_})Key: we’ve been dealing with the first nested list from step B (dates). Now, Kris is extracting time values from the second nested list in step B. Function List.RemoveNulls removes the nulls.

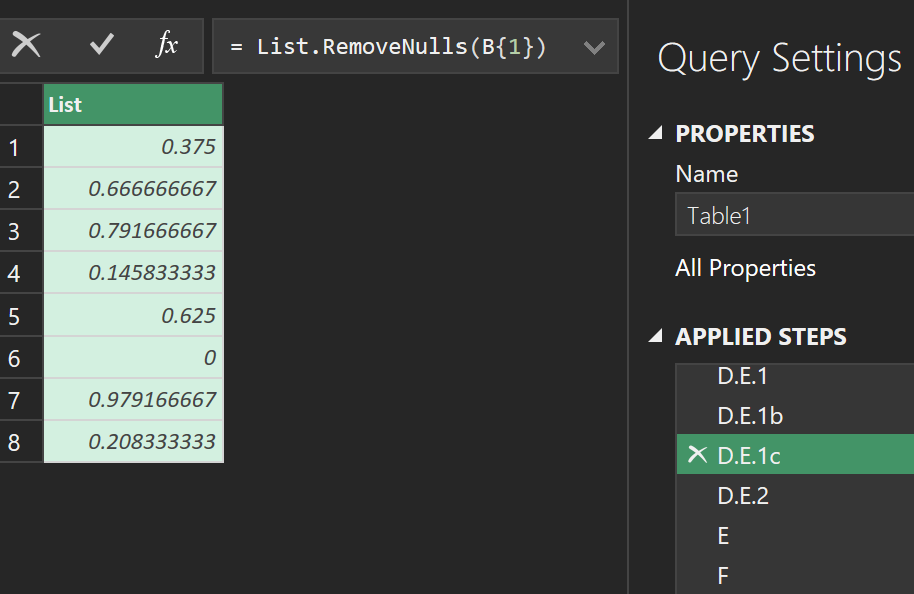

I created another mini query to see this isolated part:
Step E middle part
=List.Split(D.E.1,2)List.Split wants a list then an action on the list then return a new list

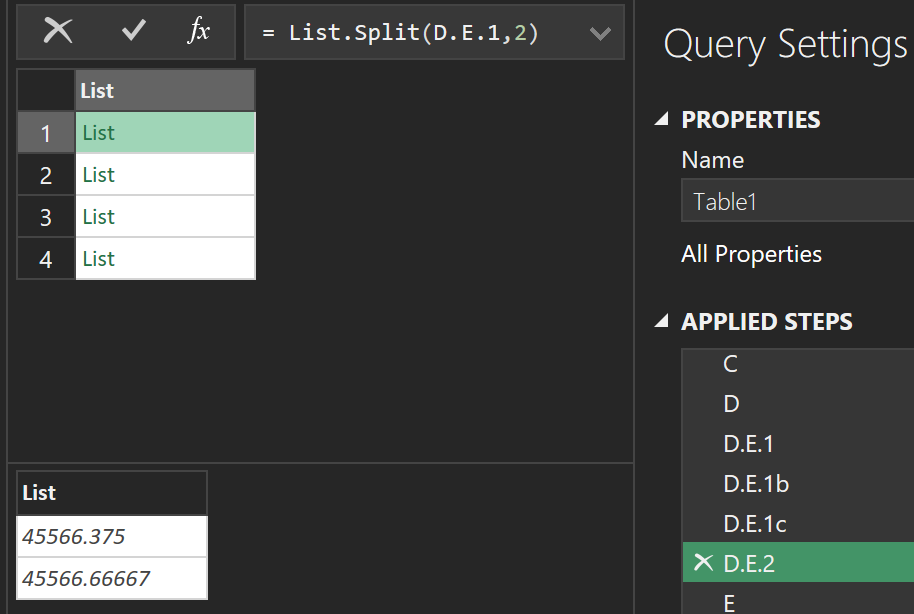

List.Split(list as list, pageSize as number) as listpageSize as number is 2 (two per nested list). To see it, I created this:
It’s easy to forget why we’re doing all this. Remember: per person, subtract start date time from end date time to create time duration!
List.Split creates four nested lists, one per person, with start date time and end date time inside each one. Above, I selected the first nested list so we can see it’s two values (bottom left).
Step E outer part
Each end date time – start date time. Multiply that amount by 24:
List.Transform wants a list then an action on the list then return a new listList.Transform(list as list, transform as function) as list(x)=> (x{1}-x{0})*24What does (x)=> do? It says: let’s create a function called x, subtract the first nested item (start date time) from the second nested item (end date time), multiply that by 24.
I recommend Mike Girvin’s book to learn Power Query function syntax (and P.Q. in general):

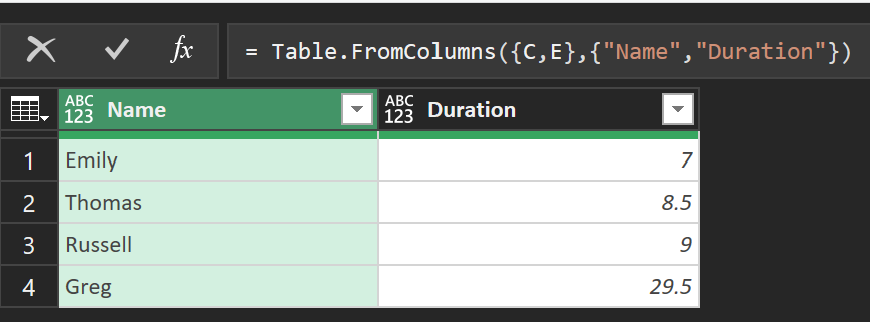

Step E’s final result is:
Step F
Table.FromColumns puts the steps together for the final answer.
=Table.FromColumns({C,E},{"Name","Duration"})Table.FromColumns(lists as list, optional columns as any) as tableAfter a lot of List functions Kris uses a Table function!
Recap
- as an advanced user, Kris did a lot of work in step E by combining functions
- also, Kris named his steps in a sequential manner (A, B, C, etc.) because that’s all he needed
- Kris can read M code like a sentence! I’m not there yet so I did the following:
- wrote new queries to see exactly what data a particular part created
- studied Microsoft’s M function syntax
- horizontally aligned M code to make it easier to read

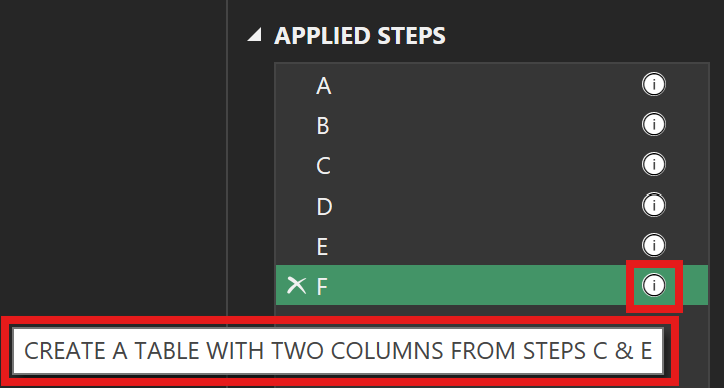

- added comments viewable in advanced editor and in Applied Steps (hover over “i”)

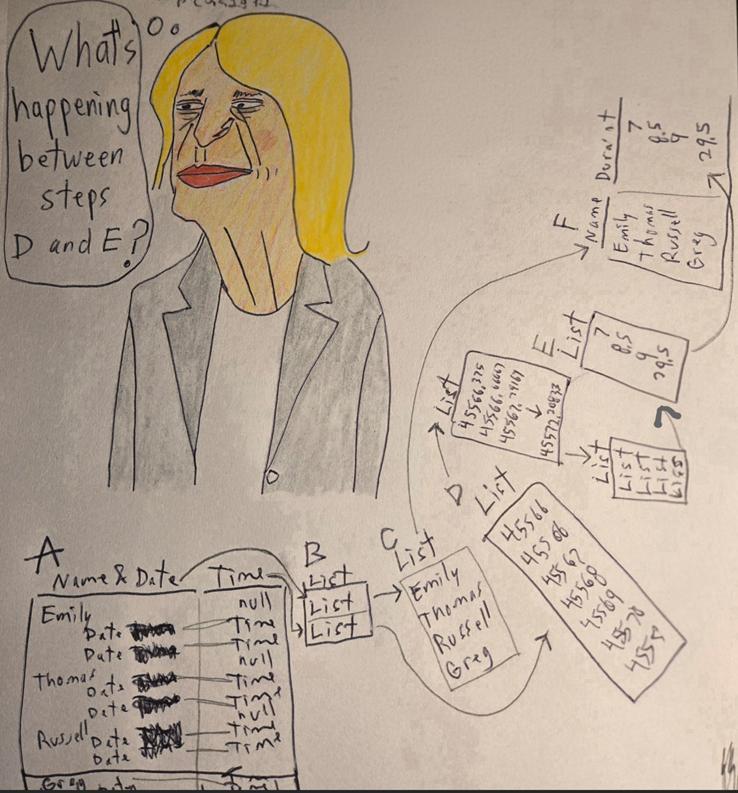

When initially auditing Kris’ M code, I sketched it out to help understand it:
I added comments, indentation, and carriage returns to Kris’ code:
let
//CONNECT TO TABLE1
A = Excel.CurrentWorkbook(){[Name="Table1"]}[Content],
//EACH COLUMN BECOMES A LIST ITEM
B = Table.ToColumns(A),
//SELECT FIRST LIST AND EXTRACT TEXT VALUES
C = List.Select(B{0}, each Text.From(_)=_),
//EXTRACT DATE VALUES AND CONVERT TO NUMBER
D = List.Transform( List.Difference(B{0},C), Number.From),
//CALCULATE DURATION BETWEEN EACH PERSON'S DATE/TIME VALUES
E = List.Transform(
List.Split(
List.Transform({0..List.Count(D)-1}, each D{_}
+List.RemoveNulls( B{1}){_}),
2
)
,(x)=> (x{1}-x{0})*24
),
//CREATE A TABLE WITH TWO COLUMNS FROM STEPS C & E
F = Table.FromColumns({C,E},{"Name","Duration"})
in
FAfter reviewing all the pieces, is the M code easier to read now? I hope so.

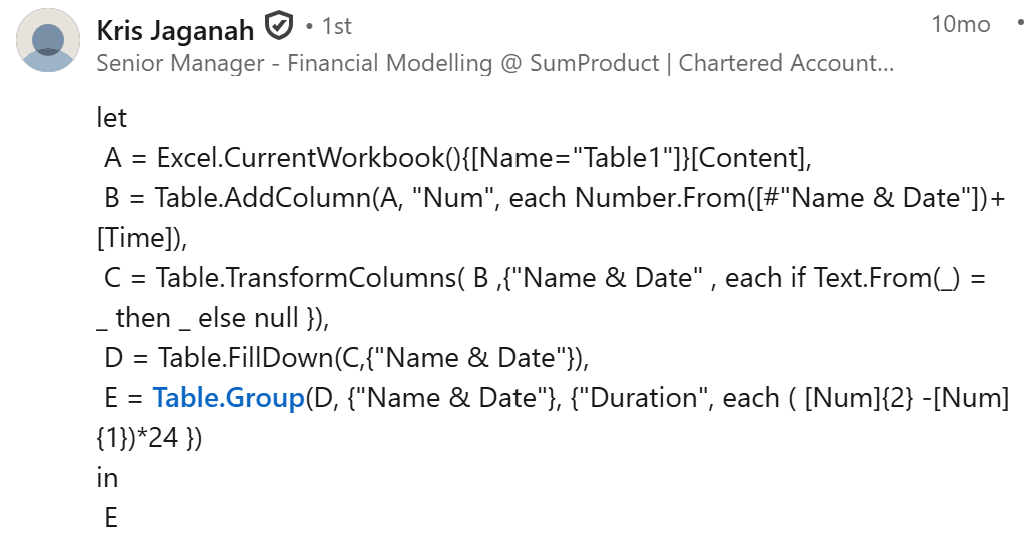

Here’s another Power Query solution by Kris for the same challenge!
let
A = Excel.CurrentWorkbook(){[Name="Table1"]}[Content],
B = Table.AddColumn(A, "Num", each Number.From([#"Name & Date"])+[Time]),
C = Table.TransformColumns( B ,{"Name & Date" , each if Text.From(_) = _ then _ else null }),
D = Table.FillDown(C,{"Name & Date"}),
E = Table.Group(D, {"Name & Date"}, {"Duration", each ( [Num]{2} -[Num]{1})*24 })
in
EAbout Me
